ModelBuilder: migration to ArcGIS Pro

ModelBuilder in ArcGIS Pro is fundamentally very similar to ModelBuilder in the other ArcGIS Desktop applications. The model diagram appearance is similar, and you still build models by adding data and geoprocessing tools and connecting them to form processes. In ArcGIS Pro you can view, edit, and run models you built in previous releases of ArcGIS Desktop.

Despite these similarities, there are some differences. Knowing about these differences will ease your transition to using ModelBuilder in ArcGIS Pro.

Compatibility

Note:

It is recommended before editing a model in ArcGIS Pro ModelBuilder that you make a copy of the original toolbox. If you edit and save the model in ArcGIS Pro, that model will not be usable in other ArcGIS Desktop applications.

Models that are newly created, as well as any models that have been edited and saved in ModelBuilder in ArcGIS Pro, cannot be used in other ArcGIS Desktop applications. To use these models, you must save the toolbox to a new toolbox of the correct version. Right-click any toolbox, select Save As, then select a version.

Toolbox Save As
Save a toolbox for use in 10.3 or previous version

Selection, connection, and navigation

ModelBuilder previously included dedicated tools to pan, zoom, select elements, and connect elements. In ArcGIS Pro, there is a Select mode, a Pan mode, and Zoom In and Zoom Out buttons.

Select mode

By default you are in Select mode. In Select mode you can click an element to select it. You can move the selected element or connect it to another element. An element does not have to be selected to connect it to another element.

  1. Hover over a model element until the cursor changes to the connection mode Point and draw a connection by holding down the left mouse button while dragging the cursor toward another element.
  2. Release the mouse button when the cursor is on top of the other element.
  3. After releasing the mouse button, choose whether to connect the element to a parameter, an environment, or use the element as a precondition.
Connect a data variable to a tool

You can also pan the model diagram when in Select mode using the vertical and horizontal scroll bars at the right side and bottom of the ModelBuilder view.

Pan mode

In Pan mode, you can click and drag the cursor anywhere in the model diagram to pan. You cannot select or connect model elements in Pan mode.

Calculate Field

The Calculate Field tool has been significantly changed in ArcGIS Pro due to the 64-bit architecture of the application. This tool no longer supports VB expressions; all expressions must be specified using Python syntax. If your model is saved with VB expressions, you will need to update the expression to use Python syntax. Follow these steps to update your Calculate Field expressions.

  1. Right-click the model and select Edit.
  2. Double-click the Calculate Field tool to open it.
  3. Change the Expression Type parameter to Python.
  4. Rewrite the Expression parameter using Python syntax.
  5. Click OK to commit the changes to the tool.
  6. Repeat these steps for any other Calculate Field tools in the model.
  7. Click Save to save the model.
Learn more about Calculate Field expressions

Intermediate and managed data

The Intermediate and Managed options have been removed in ArcGIS Pro ModelBuilder.

When you run a model, output data is created for each process in the model (unless the process only modifies the input). Some of the data created is of no use after the model is run since it was only created to connect to another process that creates new output. Such data is called intermediate data. When a model tool is run from the Geoprocessing pane, all intermediate output data is automatically deleted when the tool completes, except datasets that are output parameters. When a model is run in ModelBuilder, all data that is created is maintained.

Learn more about intermediate data

Colors, shapes, and images

Models created in ArcGIS Pro have a slightly different color scheme compared to models created in other ArcGIS Desktop applications. In ArcGIS Pro, you cannot change the colors, shapes, or background images of model elements, and you cannot add images to the model diagram. Models that were saved with custom colors, shapes, and images from other ArcGIS Desktop applications will display these custom settings and objects in ArcGIS Pro.

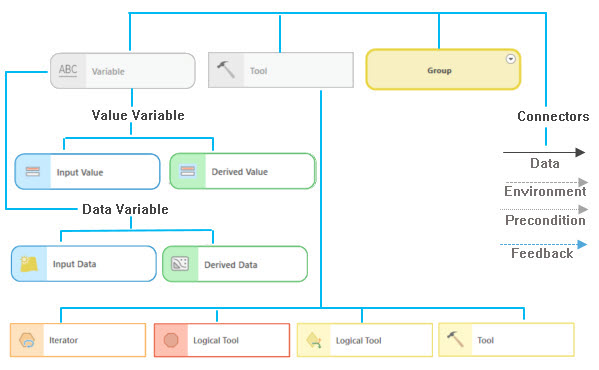

Model element colors
The colors of model elements in ArcGIS Pro

Lists and series

Lists and series are not supported in ArcGIS Pro. You can use iterators to perform batch processes on a collection of datasets.

Feature and records sets

The interactive drawing and entering of features or records is not fully supported in ArcGIS Pro. However, if one of your model parameters is a feature set, feature layer, or table view datatype, you will be able to select existing map layers from Contents, browse to datasets, or interactively enter new features on the map.

Input modes

Learn more about interactive feature input
