ACos (Image Analyst)

Available with Spatial Analyst license.

Available with Image Analyst license.

Summary

Calculates the inverse cosine of cells in a raster.

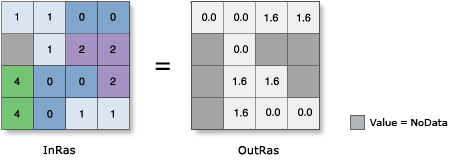

Illustration

OutRas = ACos(InRas)

Usage

• In mathematics, all trigonometric functions have a defined range of valid input values called the domain. The output values from each function also have a defined range. For this tool, the following are true:

  • The Domain is: -1 ≤ [in_value] ≤ 1

    Note that any input value that is outside this domain will receive NoData on the output raster.

  • The Range is: 0 ≤ [out_value] ≤ pi

• The input values to this tool are interpreted as unitless.

• Output values are always floating point, regardless of the input data type.

• The output values from this tool are in radians. To use degrees instead, the resulting raster must be multiplied by the radians-to-degrees conversion factor of 180/pi, or approximately 57.296.

  For further assistance, a procedure to follow and examples of converting output in radians to degrees are available.

• If the input is a multiband raster, the output will be a multiband raster. The tool will perform the operation on each band in the input.

• If the input is multidimensional raster data, all slices from all variables will be processed. The output will be a multidimensional raster in CRF format.

Parameters

Dialog

Label	Explanation	Data Type
Input raster or constant value	The input for which to calculate the inverse cosine values. To use a number as an input for this parameter, the cell size and extent must first be set in the environment.	Raster Layer; Constant

Return Value

Label	Explanation	Data Type
Output raster	The output raster. The values are the inverse cosine of the input values.	Raster

Python

ACos(in_raster_or_constant)

Name	Explanation	Data Type
in_raster_or_constant	The input for which to calculate the inverse cosine values. To use a number as an input for this parameter, the cell size and extent must first be set in the environment.	Raster Layer; Constant

Return Value

Name	Explanation	Data Type
out_raster	The output raster. The values are the inverse cosine of the input values.	Raster

Code sample

ACos example 1 (Python window)

This example calculates the inverse cosine of the values in the input Grid raster and outputs a TIFF raster.

import arcpy
from arcpy import env
from arcpy.ia import *
env.workspace = "C:/iapyexamples/data"
outACos = ACos("degs")
outACos.save("C:/iapyexamples/output/outacos.tif")

ACos example 2 (stand-alone script)

This example calculates the inverse cosine of the values in the input Grid raster.

# Name: ACos_Ex_02.py
# Description: Calculates the inverse cosine of pixels in a raster
# Requirements: Image Analyst Extension

# Import system modules
import arcpy
from arcpy import env
from arcpy.ia import *

# Set environment settings
env.workspace = "C:/iapyexamples/data"

# Set local variables
inRaster = "degs"

# Check out the ArcGIS Image Analyst extension license
arcpy.CheckOutExtension("ImageAnalyst")

# Execute ACos
outACos = ACos(inRaster)

# Save the output
outACos.save("C:/iapyexamples/output/outacos")

Environments

Auto Commit, Cell Size, Cell Size Projection Method, Current Workspace, Extent, Geographic Transformations, Mask, Output CONFIG Keyword, Output Coordinate System, Scratch Workspace, Snap Raster, Tile Size

Licensing information

• Basic: Requires Image Analyst or Spatial Analyst
• Standard: Requires Image Analyst or Spatial Analyst
• Advanced: Requires Image Analyst or Spatial Analyst
