Plus (Spatial Analyst)

ArcGIS Pro 3.4 | | Help archive

Available with Spatial Analyst license.

Available with Image Analyst license.

Available with 3D Analyst license.

Summary

Adds (sums) the values of two rasters on a cell-by-cell basis.

Illustration

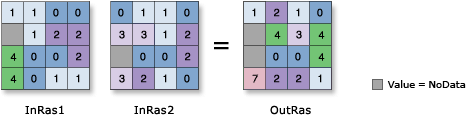

Plus illustration
OutRas = Plus (InRas1, InRas2)

Usage

  • The order of inputs is irrelevant for this tool.

  • If both inputs are integer, the output will be an integer raster; otherwise, it will be a floating-point raster.

  • If both inputs are single-band rasters or one of the inputs is a constant, the output will be a single-band raster.

  • If both inputs are multiband rasters, the tool will perform the operation on each band from one input, and the output will be a multiband raster. The number of bands in each multiband input must be the same.

  • If one of the inputs is a multiband raster and the other input is a constant, the tool will perform the operation using the constant value for each band in the multiband input, and the output will be a multiband raster.

  • If both inputs are multidimensional raster data with the same number of variables, the tool will perform the operation for all slices with the same dimension value. The output will be a multidimensional raster in CRF format. The variables in the inputs must have at least one common dimension and one common dimensional value for this tool to process; otherwise, an error will occur.

    If both inputs have one variable but different names, uncheck the Match Multidimensional Variable geoprocessing environment (set arcpy.env.matchMultidimensionalVariable = False in Python) before running the tool.

    If one of the inputs is a multidimensional raster and the other input is a constant, the tool will perform the operation for all slices for all variables using the constant value, and the output will be a multidimensional raster.

  • In map algebra, the equivalent operator symbol for this tool is "+" (link).

  • See Analysis environments and Spatial Analyst for additional details on the geoprocessing environments that apply to this tool.

Parameters

LabelExplanationData Type
Input raster or constant value 1

The input whose values will be added to.

A number can be used as an input for this parameter, provided a raster is specified for the other parameter. To specify a number for both inputs, the cell size and extent must first be set in the environment.

Raster Layer; Constant
Input raster or constant value 2

The input whose values will be added to the first input.

A number can be used as an input for this parameter, provided a raster is specified for the other parameter. To specify a number for both inputs, the cell size and extent must first be set in the environment.

Raster Layer; Constant

Return Value

LabelExplanationData Type
Output raster

The output raster.

The cell values are the sum of the first input added to the second.

Raster

Licensing information

  • Basic: Requires Spatial Analyst or Image Analyst or 3D Analyst
  • Standard: Requires Spatial Analyst or Image Analyst or 3D Analyst
  • Advanced: Requires Spatial Analyst or Image Analyst or 3D Analyst
