Iterate Row Selection (ModelBuilder)—ArcGIS Pro

Summary

Iterates over rows in a table.

This tool is only available from ModelBuilder for use in models. The tool is not available from the Geoprocessing pane or from Python.

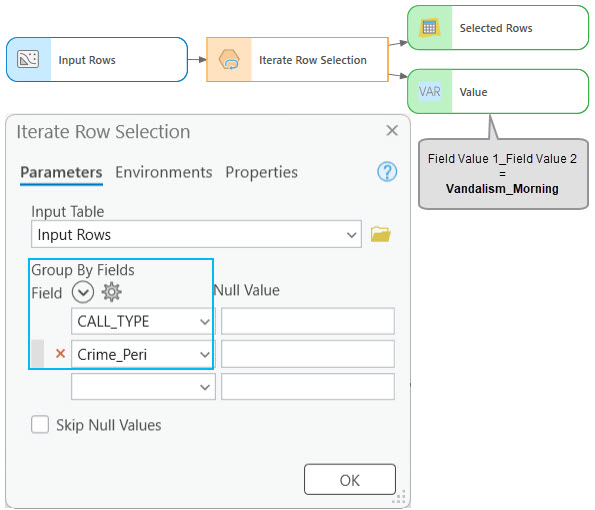

More than one group by field can be used for the selection. If one or more group by fields are specified, the number of iterations is determined by the number of unique combinations of the group by fields. For each iteration, the selection of the output feature layer is determined by the number of records that match the given combination of the group by fields. If more than one group by field is specified, the values are concatenated <field value1>_<field value2> in the output inline variable name. In the example below, two group fields, CALL_TYPE and Crime_Peri (crime period), are used. The output value is Vandalism_Morning, and so on for the other values.
If no group by field is specified, the output value will be grouped by the Object ID field, and the selection is one record per selection.
The tool has two outputs: Selected Rows and group Value of the Object ID field for selected features, which can be used as an inline variable (%Value%) in other tools.
If an iterator is added to a model, all tools in the model will iterate for each value in the iterator. If you do not want to run each tool in the model for each iterated value, create a submodel, model within a model, or nested model that contains only the iterator, and add it as a model tool to the main model.

Label	Explanation	Data Type
Input Table	The table containing the records that will be iterated.	Table View
Group By Fields (Optional)	The input field or fields that will be used to group the features for selection. Any number of input fields can be defined, resulting in a selection based on a unique combination of the fields. If no field is specified, the Object ID will be used to iterate over features.	Value Table
Skip Null Values (Optional)	Specifies whether null values in the grouping fields will be skipped during selection. Checked—The null values in the grouping fields will be skipped during selection. Unchecked—The null values in the grouping fields will not be skipped during selection. This is the default.	Boolean

Label	Explanation	Data Type
Selected Rows	A table view that can be used in other geoprocessing tools that accept a table view in ModelBuilder.	Table View
Value	The field values returned by each iteration. If more than one group by field is specified, the values are concatenated <field value1>_<field value2>.	Variant
