Available with Network Analyst license.

Connectivity in a network dataset is based on geometric coincidences of line endpoints, line vertices, and points. It also depends on the connectivity rules that you set as properties on the network dataset.

Group connectivity

Connectivity in the ArcGIS Network Analyst extension begins with the definition of connectivity groups. Each edge source is assigned to one connectivity group, and each junction source can be assigned to one or more connectivity groups. A connectivity group can contain any number of sources. How network elements connect depends on the connectivity groups that the elements are in. For example, two edges created from two distinct source feature classes can connect if they are in the same connectivity group. If they are in separate connectivity groups, the edges won't connect unless they are joined by a junction that participates in both connectivity groups.

Connectivity groups are used to model multimodal transportation systems. For each connectivity group, you select the network sources that interconnect. In the subway and street multimodal network example below, metro lines and metro entrances are all assigned to the same connectivity group. Note that Metro_Entrance is also in the connectivity group with streets. It forms the link between the two connectivity groups. Any path between the groups must travel through a shared metro entrance. For example, a route solver may determine that a pedestrian's best route between two locations in a city is to walk on the street to a metro entrance, board a subway train, take another train at a line-crossing station, and exit through another metro entrance. Connectivity groups keep the two networks distinct, yet connect them at shared junctions (metro entrances).

Connectivity groups

Connect edges in a connectivity group

Edges in the same connectivity group can connect in two ways—endpoint or vertex—set by the connectivity policy on the edge source.

  • If you set endpoint connectivity, line features become edges joining only at coincident endpoints.
    Endpoint connectivity

    In this case, line feature l1 becomes edge element e1, and line feature l2 becomes edge element e2. There will always be one edge element created for one line feature with this connectivity policy. Building networks with endpoint connectivity is one way to model crossing objects, such as bridges. To model this case, the two sources, bridges and streets, are placed in the same connectivity group (1). The streets source is assigned any vertex connectivity to allow street features to connect to other street features at coincident vertices. The bridges source is assigned endpoint connectivity. This means bridges connect to other edge features only at their endpoints. Consequently, any street going under the bridge will not be connected to the bridge. The bridge will connect to other streets at its endpoints.

    Connecting bridges

    If you have only one source in your network that you want to use to model overpasses (bridges) and underpasses (tunnels), you could use elevation fields on planar data. For more information, see the Elevation fields section below.


    If you are working with multipart line features, understand that Network Analyst treats the vertices at the ends of each part as endpoints, not vertices.

  • If you set any vertex connectivity, line features are split into multiple edges at coincident vertices. Setting this policy is important if your street data is structured such that streets meet other streets at vertices.
    Any vertex connectivity

    In this case, two polylines crossing at a shared vertex position are split into four edges, with a junction at the vertex. Edges e1 and e3 are identified with the source feature class and object ID of line feature l1. Edges e2 and e4 are identified with the source feature class and object ID of line feature l2. Junction j3 will be a newly created system junction. Junctions j1, j2, j4, and j5 will either be system junctions or junctions from coincident points from a source feature class.


Not all crossing line features can produce connected edges. If they do not share any coincident endpoints or vertices, no connectivity policy will create a junction at the point of intersection. Street data for network datasets must be cleaned first so that either vertices or endpoints are present at all intended junctions.

No coincident vertices, no connectivity

If you need to remedy your street data, either use a geoprocessing tool, such as Integrate, to split crossing lines or establish a topology on these feature classes, and edit street features while applying topology rules that enforce feature splits at intersections.

Connect edges through junctions across connectivity groups

Edges in different connectivity groups can be connected only through a junction shared by both connectivity groups.

In the example of a multimodal system combining a bus network and street network, a bus stop is added from a point source and is in both connectivity groups. The point location of the bus stop must then be spatially coincident with the bus lines and street lines it joins. When the point location for the bus stop is added, whether it successfully becomes a junction depends on the junction connectivity policy. As with edges, junctions connect to edges at endpoints or vertices, depending on the target edge source's connectivity policy. However, there are situations in which you may want to override this behavior.

Junctions that honor connectivity
Setting up honor connectivity policy for junctions

For example, the bus line that the bus stop connects to has an endpoint connectivity policy, but often you will want to place the bus stop at an intermediate vertex. To do so, you will need to set a junction policy to override the default behavior of connecting a junction to a given edge.

To override the default behavior of junctions forming at endpoints or vertices according to the edge source's connectivity policy, set the junction source's connectivity to Override. The default is to honor the edge connectivity policy.

Junctions that override the connectivity

Setting up override connectivity policy for junctions

Vertical connectivity

The connectivity of network elements can depend not only on whether they are coincident in x and y space but also on whether they share the same elevation. There are two options for modeling elevation: using elevation fields and using z-coordinate values from geometry.

Elevation fields

Elevation fields are used in the network dataset to refine the connectivity at line endpoints. They contain elevation information derived from fields on a feature class participating in the network. This is different from establishing connectivity based on z-coordinate values, in which the physical elevation information is stored on each vertex of the feature. Elevation fields apply to edge and junction sources. Edge feature sources using elevation fields have two fields to describe elevation (one for each end of the line feature).

In the example below, four line features, EF1, EF2, EF3, and EF4, belong to the same connectivity group and observe endpoint connectivity. The elevation values at the endpoints of EF3 and EF4 are 0; the elevation values at the endpoints of EF1 and EF2 are 1. Hence, at the location where all four endpoints are coincident, EF3 is connected to EF4 only (not to EF1 or EF2). Similarly, EF1 connects to EF2 only, not to EF3 or EF4.

Modeling connectivity through elevation fields

It is important to understand that the elevation fields refine the connectivity at endpoints; they do not override it. Two line features may have the same elevation field value at their endpoints and these endpoints may be coincident, but if they are placed in two different connectivity groups, they will not be connected.

Numerous data vendors provide elevation field data to refine the connectivity at line endpoints. The ArcGIS network dataset connectivity model can use this elevation field data to enhance connectivity. The interaction of elevation fields with the connectivity model is also vital to model special scenarios, such as bridges and tunnels.

Since elevation fields are only used to refine connectivity at the line endpoints, they do not have any effect on how connectivity is established at non-endpoint vertices. This is because non-endpoint vertices do not have an elevation field value. The network dataset will treat all non-endpoint vertices as having an elevation of NULL. This means that for edge sources with a connectivity policy of Any Vertex, non-endpoint vertices that are coincident to a line endpoint in the same connectivity group will only connect if that line endpoint has an elevation field value of NULL. Additionally, non-endpoint vertices will connect to all other coincident non-endpoint vertices in the same connectivity group.

Z-coordinate values from geometry

When source features have z-values stored in their geometry, you can create 3D networks.

Indoor pedestrian paths are often modeled with 3D networks. Consider that many hallways in a multistory building are indistinguishable in 2D, x,y space, yet they can be separated by their z-coordinate values in 3D space. Similarly, elevator shafts connect floors by moving vertically. In x,y space, elevators are points, but in 3D space, they are properly modeled as lines.

Z-coordinate values make it possible to model the connectivity of point and line features in three dimensions. Connectivity can only occur in a 3D network dataset in which source features (specifically, points, line endpoints, and line vertices) share all three coordinate values: x, y, and z. The following set of images demonstrates this requirement:

Connected and disconnected lines in three-dimensional space (front view)
Four line features are in three-dimensional space: three horizontal lines (blue) and one diagonal line (red). The six green spheres represent the line endpoints.
Connected and disconnected lines in three-dimensional space (side view)
The same lines and endpoints are shown from another perspective. It is clear that the red line connects with the top two blue lines at their endpoints. Yet the red line doesn't intersect the lower blue line.
Diagram of the edges that are created from the 3D features
This graphic demonstrates which edges would be connected from the three-dimensional features shown in the previous two graphics. Because the red line shares x-, y-, and z-coordinate values with the two blue lines at the top, the edges are connected. However, since the red line and the lower blue line do not intersect, their corresponding edges in the network dataset cannot connect.

Three-dimensional networks also respect the connectivity policy settings of the connectivity group, as the following three images demonstrate:

Red line feature intersecting two parallel blue line features in three-dimensional space
One red line feature intersects two blue line features at vertices (green cubes). Since the lines intersect at vertices, their corresponding edges may or may not connect in a network dataset; it depends on the connectivity policy.

Diagram of the results of using the Endpoint connectivity policy
When the connectivity policy is set to End Point, the resulting edges (e2, e1, and e3) don't connect.
Diagram of the results of using the Any Vertex connectivity policy with the three-dimensional line features
When the connectivity policy is set to Any Vertex, the resulting edges do connect, which makes it possible to travel between the blue edges and red edges.

Modify elevation field vertical connectivity

Complete the following steps to modify the network's elevation fields:

  1. Open the Network Dataset Properties dialog box.
  2. Click Source Settings > Vertical Connectivity.

    The Vertical Connectivity page appears. If your vertical connectivity policy is Policy: Elevation Fields, you will see a grid containing two rows for each edge source, one for the along direction and one for the against direction. You can use this grid to set the elevation field for each direction of each edge source.

  3. Click below the Elevation Field column and select the required field from the drop-down list.

    The only fields that are available in the drop-down list are those with an integer data type because elevation levels are specified by integers. Any integer value is valid; that is, the field you choose can have positive, negative, and zero values.

    Change elevation field.

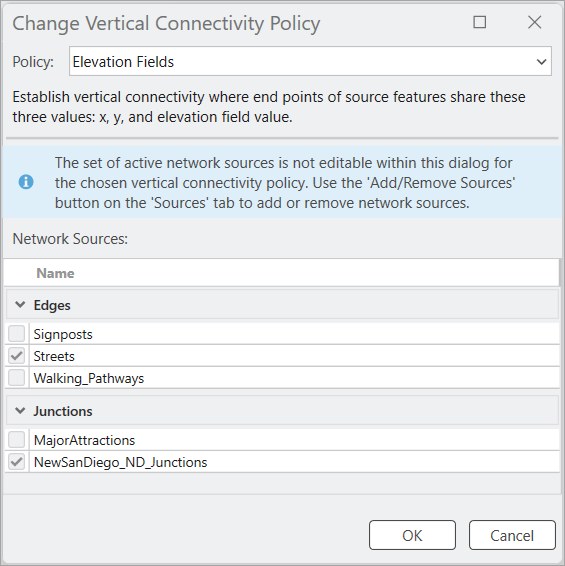

    If the network dataset you are using was not configured to use the Elevation Fields vertical connectivity policy at the time it was created, you will not be able to edit elevation fields on this page. You cannot change the vertical connectivity policy after creating your network.

  4. Click OK.

    The change to elevation field is saved to the network dataset.

  5. Note:

    When you change any network attributes, you must build the network dataset to reestablish the connectivity, recalculate affected attributes, and update the network elements.

    Learn more about when a rebuild is required

Modify group connectivity

Complete the following steps to modify group connectivity settings:

  1. Open the Network Dataset Properties dialog box.
  2. Click Source Settings > Group Connectivity.
  3. To modify the policy of a source, click in the Policy column for the source and choose the policy from the drop-down list.

    Edge source connectivity can be set to End Point or Any Vertex. Junction sources can be set to Honor or Override to honor or override, respectively, the connectivity policy of edge sources.

    Choose a policy for the source.

  4. In the Group Count box, click the up or down arrow to increase or decrease the number of connectivity groups for the network dataset, or type the group count in the box.
  5. Click the button in the relevant group column to assign an edge source to a connectivity group.

    Each edge source can only belong to one group.

  6. Check the check box in the relevant group column to assign junctions to connectivity groups.

    Each junction source can belong to multiple groups.

  7. If your feature class has subtypes, click the Change Subtypes Usage button in the upper right corner.
    1. Check the source feature or features to which you want to add subtypes. Connectivity can be modified per subtype on the Group Connectivity page.

      Select subtypes.

    2. Click OK.

      The subtypes appear on the Group Connectivity page. Each subtype can be assigned to a connectivity group, with a connectivity policy.

      Subtypes added to the Group Connectivity page.

  8. Click OK.

    Edits made on the Group Connectivity page are saved to the network dataset.

  9. Note:

    When you change any network attributes, you must build the network dataset to reestablish the connectivity, recalculate affected attributes, and update the network elements.

    Learn more about when a rebuild is required
