Export Footprints (Bathymetry)

サマリー

Exports footprints from a BisCatalog to an output feature class.

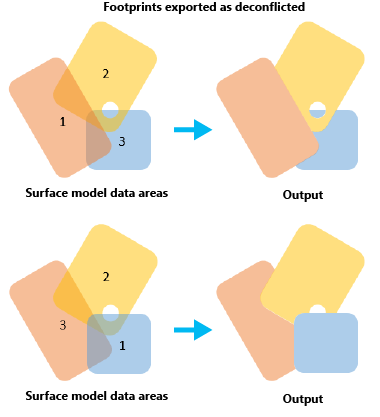

図

使用法

• The Input BisCatalog parameter value must be a catalog dataset in a Bathymetric Information System (BIS) workspace.

• The Output Feature Class parameter value must be created in an enterprise or file geodatabase.

• The Output Feature Class parameter value must be exported to a workspace that is not a BIS.

• When added to the map, the output polygon feature class will have ArcGIS Pro default rendering. To visualize a layer using the priority order established in a rule or model file, go to the Advanced symbology options tab and choose OBJECTID from the Drawing order field. Choose Lowest draws on top as the sorting method.

  Learn more about changing the feature drawing order field

パラメーター

ダイアログ

ラベル	説明	データ タイプ
Input BisCatalog	The BisCatalog that footprint features will be extracted from.	Feature Layer
Output Feature Class	The output feature class containing the footprint features extracted from the BisCatalog.	Feature Class
Query File (Filter, Rule, Model) (オプション)	A filter, rule, or model file that will be used to establish either the subset of BIS datasets or the priority order of the exported footprints included in the output feature class. Choose from the following query file types: Filter file (*.filter)—This file specifies the set of footprints that will be exported from the BisCatalog to the output polygon feature class. The output will follow the default OBJECTID ordering. Rule file (*.rule)—This file establishes the sorting rules for the output data. All footprints in the BisCatalog will be exported to the polygon feature class according to the defined rules. Model file (*.model)—This file defines the specific set of footprints that will be exported from the BisCatalog to the output polygon feature class, along with the specified order of the output. You can create a filter file with the Explore Bathymetry tool. You can create a rule or model file with the Compose Surface tool. If no query file is provided, the output feature class will include all BIS dataset footprints in OBJECTID order.	File
Deconflict Footprints (オプション)	Specifies whether the output will contain overlapping features. Checked—Footprint features will be exported as nonoverlapping polygon features. Footprints with the highest draw order will be preserved, and footprints with lower draw orders will be modified to exclude overlapping areas. Unchecked—All footprints will be preserved in the output feature class. This is the default.	Boolean

Python

arcpy.bathymetry.ExportFootprints(in_biscatalog, out_feature_class, {in_query_file}, {deconflict_footprints})

名前	説明	データ タイプ
in_biscatalog	The BisCatalog that footprint features will be extracted from.	Feature Layer
out_feature_class	The output feature class containing the footprint features extracted from the BisCatalog.	Feature Class
in_query_file (オプション)	A filter, rule, or model file that will be used to establish either the subset of BIS datasets or the priority order of the exported footprints included in the output feature class. Choose from the following query file types: Filter file (*.filter)—This file specifies the set of footprints that will be exported from the BisCatalog to the output polygon feature class. The output will follow the default OBJECTID ordering. Rule file (*.rule)—This file establishes the sorting rules for the output data. All footprints in the BisCatalog will be exported to the polygon feature class according to the defined rules. Model file (*.model)—This file defines the specific set of footprints that will be exported from the BisCatalog to the output polygon feature class, along with the specified order of the output. You can create a filter file with the Explore Bathymetry tool. You can create a rule or model file with the Compose Surface tool. If no query file is provided, the output feature class will include all BIS dataset footprints in OBJECTID order.	File
deconflict_footprints (オプション)	Specifies whether the output will contain overlapping features. DECONFLICT_FOOTPRINTS—Footprint features will be exported as nonoverlapping polygon features. Footprints with the highest draw order will be preserved, and footprints with lower draw orders will be modified to exclude overlapping areas. NO_DECONFLICT_FOOTPRINTS—All footprints will be preserved in the output feature class. This is the default.	Boolean

コードのサンプル

ExportFootprints example (stand-alone script)

The following script demonstrates how to use the ExportFootprints function.

# Import arcpy module
import arcpy
arcpy.CheckOutExtension("Bathymetry")

# Identify tool parameters
in_biscatalog = r"C:\Data\BIS.gdb\BisCatalog"
out_feature_class = r"C:\Data\target.gdb\OutputFeatureClass"
in_query_file = r"C:\date_desc.rule"
deconflict_footprints = "DECONFLICT_FOOTPRINTS"

# Execute the tool
arcpy.bathymetry.ExportFootprints(in_biscatalog, out_feature_class, in_query_file, deconflict_footprints)
arcpy.CheckInExtension("Bathymetry")
