Minus function

Available with Image Analyst license.

Available with Spatial Analyst license.

Overview

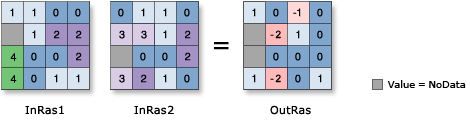

Subtracts the value of the second input raster from the value of the first input raster on a pixel-by-pixel basis.

Notes

The order of the inputs is important and affects the output result.

If both inputs are integer, the output will be an integer type; otherwise, it will be a floating-point type.

If both inputs are single band rasters, or one of the inputs is a constant, the output will be a single band raster.

If both inputs are multiband rasters, the function will perform the operation on each band from one input, and the output will be a multiband raster. The number of bands in each multiband input must be the same.

If one of the inputs is a multiband raster and the other input is a constant, the function will perform the operation against the constant value for each band in the multiband input, and the output will be a multiband raster.

If both inputs are multidimensional rasters with same number of variables, the function will perform the operation for all slices with same dimension value, and the output will be a multidimensional raster. The variables in the inputs must have same dimensions or a common dimension but no uncommon dimensions.

If one of the inputs is a multidimensional raster and the other input is a constant, the function will perform the operation for all slices for all variables against the constant value, and the output will be a multidimensional raster.

Parameters

Parameter name	Description
Raster	The input from which to subtract the values of the second input. A constant value can be used as an input for this parameter, provided a raster is specified for the other parameter.
Raster2	The input values that will be subtracted from the values of the first input. A constant value can be used as an input for this parameter, provided a raster is specified for the other parameter.
Extent Type	Choose which extent should be used in the output raster: First Of—Use the extent of the first input raster to determine the processing extent. Intersection Of—Use the extent of the overlapping pixels to determine the processing extent. This is the default. Union Of—Use the extent of all the rasters to determine the processing extent. Last Of—Use the extent of the last input raster to determine the processing extent.
Cellsize Type	Choose which cell size to use in the output raster. If all the input cell sizes are the same, all the options will yield the same results. First Of—Use the first cell size of the input rasters. Min Of—Use the smallest cell size of all the input rasters. Max Of—Use the largest cell size of all the input rasters. This is the default. Mean Of—Use the mean cell size of all the input rasters. Last Of—Use the last cell size of the input rasters.
