Apply cartographic realignment

Available with Location Referencing license.

You can update route geometry based on aerial imagery, as-built drawings, or input from field data collectors without changing measures by making direct modifications to the centerline. This is known as cartographic realignment. ArcGIS Pipeline Referencing allows you to change the shape of centerlines and preserve the calibration of the underlying routes as they existed before the cartographic realignment was applied. The results are achieved by editing the geometry of the centerlines that are associated with the route.

Note:

The centerline feature class must be visible in the Contents pane to apply cartographic realignment.

Tip:

Cartographic realignment uses the LRS Network's Update route measures in cartographic realignment property. This property is disabled by default. It can be enabled for routes in the LRS Network using the Update route measures in cartographic realignment parameter of the Modify Network Calibration Rules tool.

When Update route measures in cartographic realignment is enabled in a network in which cartographic realignment is performed, route measures can change after cartographic realignment. Subsequently, changes to route measures after cartographic realignment can impact events associated to the route, depending on the configured event behavior.

Learn more about updating route measures and events during cartographic realignment

1. Add the centerline and network feature class to a map.

   Alternatively, open a map in which the centerline and network feature class are present.

   Note:

   The information model expects only one centerline at any given location. Ensure that the centerlines used for your edit do not overlap other centerlines in the LRS.

   Note:

   Traditionally versioned networks must be edited through a direct connection to the geodatabase. Branch-versioned networks, including any network configured with a user-generated route ID, must be edited through a feature service.

2. Zoom in to the location of the alignment change.

   Note:

   The centerline feature for cartographic realignment of the route must exist in the centerline feature class before the realignment.



3. Uncheck the network layer in the Contents pane, on the List By Selection tab , in the Selection list.
4. Check the centerline layer in the Contents pane, on the List By Selection tab , in the Selection list.
5. Select the centerline feature for the edit in the map.
6. Double-click the centerline's edge.

   The selected centerline's vertices appear.

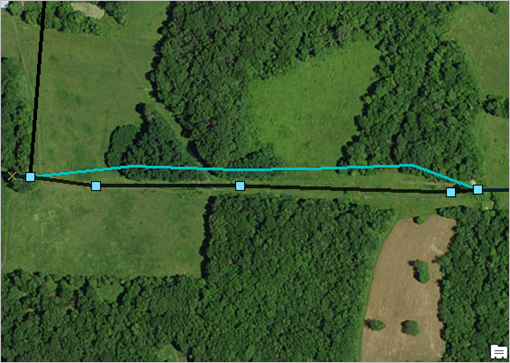

7. Edit the centerline's vertices as necessary.

   You can add and delete vertices and modify segments. You can also use the geometry editing tools available in Pipeline Referencing.



8. After editing the vertices to match the proposed alignment of the route, right-click anywhere on the map and click Finish.

   The route is cartographically realigned.

   Vertices on the route are impacted by the cartographic realignment based on the configured cartographic realignment option.



   Note:

   • After centerlines are updated, the route shapes in all networks are also updated. However, the event shapes for events and locations of the managed intersections are not updated until you run the Apply Event Behaviors and Generate Intersections geoprocessing tools.

     Learn more about scenarios for generating and updating intersections

   • It is also important to note that when the centerlines are edited, all routes in all networks, across all times, are modified accordingly.
   • If conflict prevention is enabled, locks are acquired on all routes associated with the centerline being edited.

   Note:

   If a message regarding acquiring locks or reconciling appears, conflict prevention is enabled.

Complex route cartographic realignment scenarios

Scenarios for complex route cartographic realignment on loop and lollipop routes when Update route measures in cartographic realignment is disabled are described below.

Cartographic realignment on a loop

In the following example, an undershoot is fixed on a loop route that has a start measure of 0 and an end measure of 4 before cartographic realignment:

After cartographic realignment, the undershoot on the loop is fixed and two intermediate calibration points are added at measures 1.33 and 2.67.

Note:

If the Update route measures in cartographic realignment property is disabled, then existing intermediate calibration points will have updated measures to account for the shape change. If this property is enabled, only calibration points upstream of the cartographic realignment will have their measures changed.

This means, in the example above, the location of the intermediate calibration points stays the same, but their measures can change.

Cartographic realignment on a lollipop

In the following example, an undershoot is fixed on a lollipop route that has a start measure of 0 and an end measure of 5 before cartographic realignment:

After cartographic realignment when Update route measures in cartographic realignment is disabled, the undershoot on the lollipop is fixed and two intermediate calibration points are added at measures 2.46 and 3.86.

In the following example, an overshoot is fixed on a lollipop route that has a start measure of 0 and an end measure of 5 before cartographic realignment:

After cartographic realignment when Update route measures in cartographic realignment is disabled, the overshoot on the lollipop is fixed.
