Change the layout applied to a link chart

As you build a link chart from a knowledge graph, you can change how entities are arranged to better visualize the relationships between them. You can select individual entities and move them. You can also change the layout that is used to arrange entities on the link chart and draw the relationships between them.

By default, entities are arranged using the standard organic layout. However, several types of layouts are available to choose from: basic, organic, tree, radial, hierarchical, and chronological. The layout used to arrange the contents of a link chart is indicated on the ribbon and is referred to as the current layout. Various operations that act on this link chart will use the current layout to process results. For example, when you add entities and their relationships, they are added in a manner that is appropriate for the current layout.

If a specific portion of a link chart isn't well-represented by the current layout, you can select those graph items and apply a different layout to the selected content.

Basic layouts

This group only includes the grid layout at this time. This layout arranges entities in a regularly spaced lattice pattern, where the size of the grid depends of the number of entities.

Organic layouts

In this group, entities are arranged on the link chart using force-directed layouts. This type of layout algorithm considers the link chart as if it were a mechanical system. The entities repel each other like two magnets aligned with the same poles facing each other, while they are attracted to each other by the relationships that join entities together. The algorithm iteratively reviews and places entities and evaluates the forces until equilibrium is reached. Settings allow you to customize how entities are placed. These layouts allow you to visualize entities in clusters that emphasize how they are connected.

The supported organic layouts are standard, community, leaf circle, fusiform, and geographic.

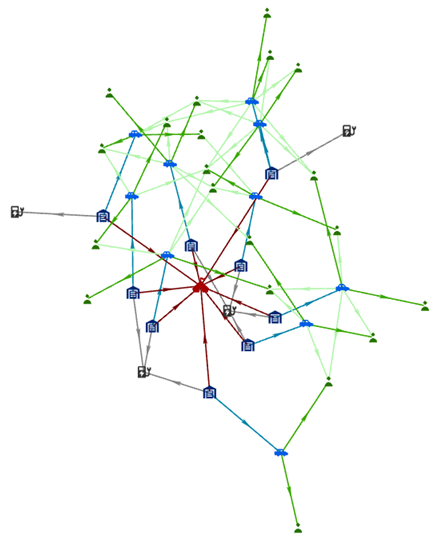

Standard organic layout

The standard layout uses a force-directed layout to arrange the entities.

The standard layout is the default layout used to arrange entities and relationships when a link chart is created.

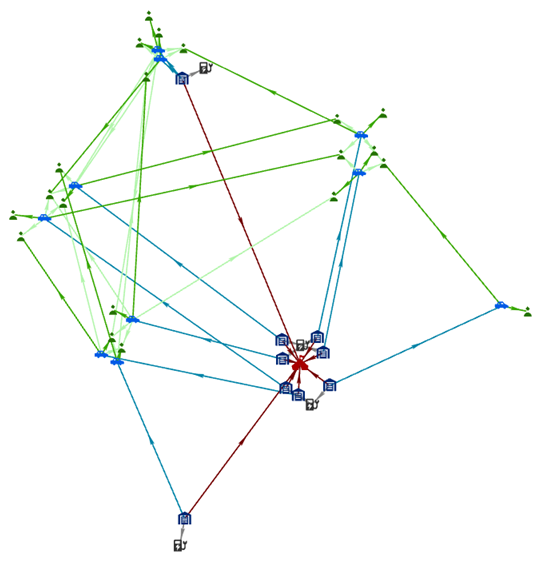

Community organic layout

The community layout finds communities, which are groups of entities that are closely related to each other. A force-directed layout is then used to arrange the communities. The attraction forces of relationships between entities of different communities are relaxed so that communities are more spread out than with the standard organic layout.

Leaf circle organic layout

The leaf circle layout uses the same force-directed layout as the standard layout. However, the leaf entities are arranged in circles around the entities to which they are connected. This structure allows you to visualize which entities are peripheral to the network.

Fusiform organic layout

The fusiform layout is similar to the leaf circle layout. However, entities with a reduced degree of two or three are handled differently.

A group of entities with a reduced degree of two that are associated with the same two entities are excluded from the force-directed layout process at the beginning. At the end, the group of entities are placed along a line. The line is orthogonal to a line drawn between the two entities to which they are connected. For example, suppose two parents stand separated from each other on a path. A line can be drawn between the two parents along the sidewalk. Their children would stand next to each other along a line drawn orthogonal to the line that connects the parents.

Entities with a reduced degree of three are handled in a similar manner. However, they are positioned around the center of mass between the connected entities. This layout allows you to see that several entities have relationships with same pair or trio of entities.

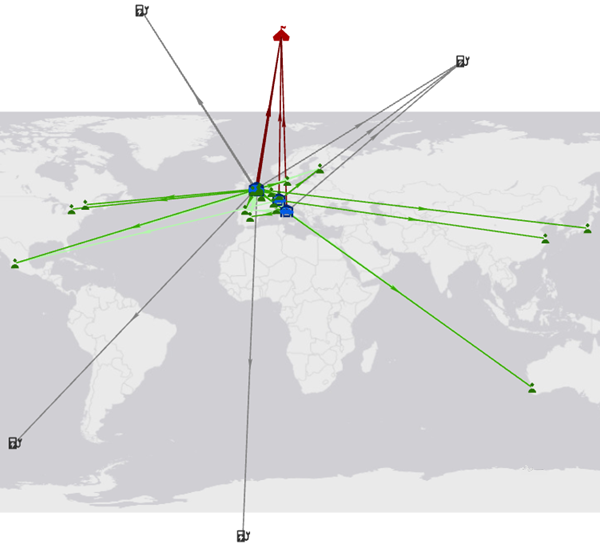

Geographic organic layout

The geographic layout arranges spatial entities geographically using their geometry. Spatial entities where the entity has a null geometry and nonspatial entities are also displayed on the link chart, but their placement and arrangement are determined using the standard layout.

The Light Gray Canvas basemap is used by default as a backdrop to provide spatial context. To change the basemap, click the Basemap gallery in the Layer group on the Link Chart tab on the ribbon.

You can also add spatial data to link charts that use the geographic layout. On the Link Chart tab, in the Layer group, click Add Data .

If you change the link chart to use a different layout instead, the basemap and any added spatial data remain in the Content pane but their data is not visible.

Note:

The geographic layout uses the WGS 1984 coordinate system, which is the only coordinate system supported when defining an entity's geospatial feature. If you change the link chart's coordinate system, the layout of the entities and relationships may appear distorted and some graph items may not be visible.

Tree layouts

A tree layout arranges entities and their relationships as in nature, where the tree starts from the trunk and all branches move out from that point. In the link chart, the root entity is the starting point, positioned at the top for a top to bottom layout. The entities related to the root entity are then lined up in a row below the root entity, from left to right in this example. Any entities related to those items that aren't already present in the link chart are added as another row closer to the bottom, and so on.

You can designate one or more entities in the link chart as the root entities. If a root entity isn't specified, the algorithm identifies the entity associated with the smallest network topology index and uses it as the root entity.

The tree layout types represent the different directions in which relationships can be oriented. The types are as follows: left to right, right to left, top to bottom, and bottom to top.

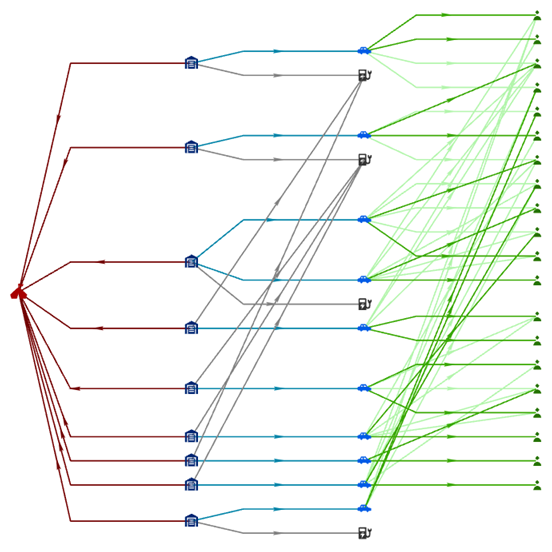

Left to right tree layout

The left to right layout positions the root entity on the left of the link chart. Each level in the tree is positioned closer to the right of the link chart.

Right to left tree layout

The right to left layout positions the root entity on the right of the link chart. Each level in the tree is positioned closer to the left of the link chart.

Top to bottom tree layout

The top to bottom layout positions the root entity at the top of the link chart. Each level in the tree is positioned closer to the bottom of the link chart.

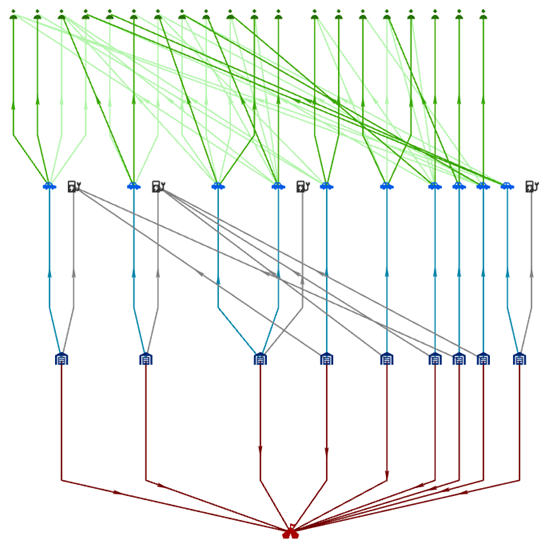

Bottom to top tree layout

The bottom to top layout positions the root entity at the bottom of the link chart. Each level in the tree is positioned closer to the top of the link chart.

Radial layouts

Radial layouts are a particular form of tree layout where the root of the tree is placed in the center of a circle and the entities to which it is related are positioned in a circle around the root. The supported radial layouts are root-centric and node-centric.

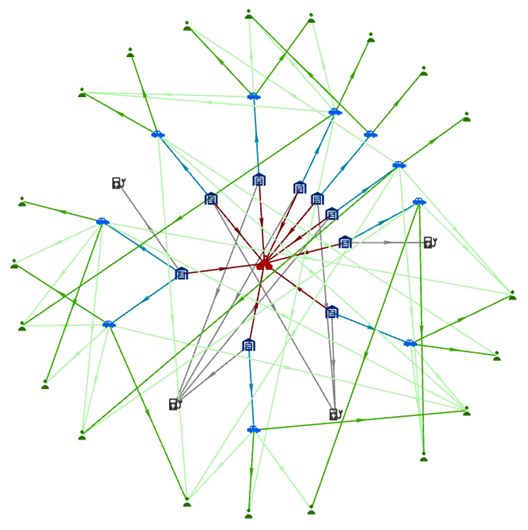

Root-centric radial layout

The root-centric layout places the root entity for the tree in the center of a circle. All leaf entities for the tree are positioned around the outer edge of the circle. Entities at each level of hierarchy in the tree are arranged in concentric circles between the root entity and the outer circle.

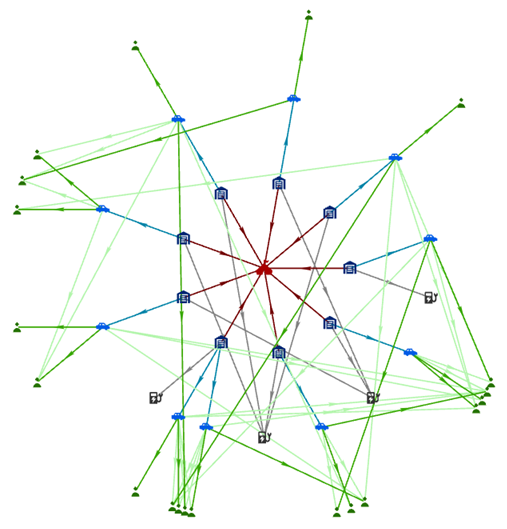

Node-centric radial layout

The node-centric layout is also based on circles. Each entity is used as the center of a circle and the entities to which it is related are placed around the edge of that circle. Entity circles can overlap, as entity circles are placed around the root of the tree.

Hierarchical layouts

The hierarchical layouts are arranged similarly to tree layouts. However, an attempt is made to orient the majority of the relationships in the specified direction. For example, in a top to bottom hierarchical layout, origin entities for the relationship are positioned at the top and destination entities are positioned at the bottom.

The algorithm will attempt to limit the number of places in which the lines representing relationships cross each other. In contrast with tree layouts, relationships are not allowed between entities at the same level in the chart with hierarchical layouts.

The supported hierarchical layouts are top to bottom and bottom to top.

Top to bottom hierarchical layout

The top to bottom layout positions the root entity at the top of the link chart. The algorithm attempts to place origin entities toward the top and destination entities toward the bottom of the link chart.

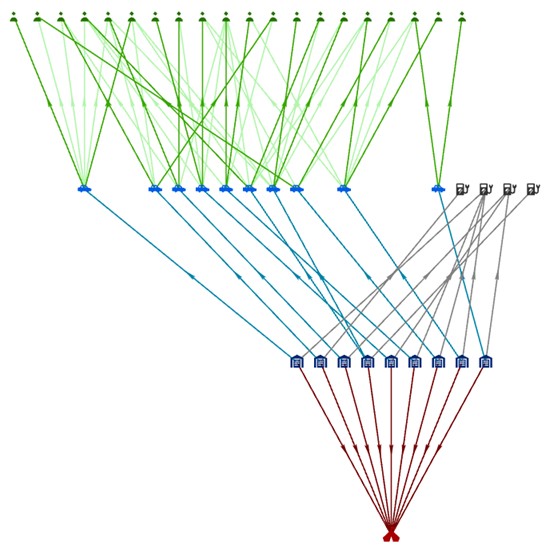

Bottom to top hierarchical layout

The bottom to top layout positions the root entity at the bottom of the link chart. The algorithm attempts to place origin entities toward the top and destination entities toward the bottom of the link chart.

Chronological layouts

Chronological layouts arrange entities and relationships using time. Entities with time properties, called event entities, and relationships with time properties, called event relationships, are arranged on one or more time lines in the order they occurred. The entity type or relationship type must have a time property and time must be enabled for the associated link chart layer for an entity or relationship to be considered an event.

By default, the time direction starts with the oldest date on the left and the newest date on the right. These layouts include a time banner, which shows the time intervals most appropriate for the data, the start and end of each event, and the UTC offset.

There are four types of events represented in chronological layouts:

• Durative entity events: Entities with a start and end date property.
• Punctual entity events: Entities with only one date property.
• Durative relationship events: Relationships with a start and end date property.
• Punctual relationship events: Relationships with only one date property.

All entities not related to an event are arranged using force-directed layouts outside of the chronological part of the layout.

The supported chronological layouts are timeline and multi-timeline.

Timeline

The timeline layout arranges all events in a single time line. By default, the direction of time is left to right, and events that overlap in time are arranged vertically.

The timeline layout has various elements that communicate the relationship between events over time. The time axis (number 1 in the image above) indicates the time direction, the UTC offset, dates and times, and the start and end of events. The timeline (number 2 in the image above) contains the events. Nonevent entities (number 3 in the image above) related to events are displayed outside the timeline. Relationships between nonevent entities and nonevent entities not related to event entities (number 4 in the image above) are displayed farthest from the time axis.

You can change the properties that arrange entities and relationships in this layout in the layout settings.

Multi-timeline

The multi-timeline layout creates individual timelines for each entity related to an event. Event entities are placed between the timelines. Relationships are drawn between a timeline and the connected event entity. Relationships connecting events that have both a start time and an end time, also called durative events, have a right angle. The portion along the timeline represents the duration of the event. The layout arranges entities and relationships depending on the type of event as follows:

• Durative entity events: The relationships have the right angle to the entity event, and are drawn on the time line for the duration of the event.
• Punctual entity events: Relationships are drawn in a straight line from the time line to the event entity.
• Durative relationship events: The relationship is drawn on both of the time lines of the non-event entities for the duration of the event.
• Punctual relationship events: Relationships are drawn in a straight line from the time line to the non-event entities.

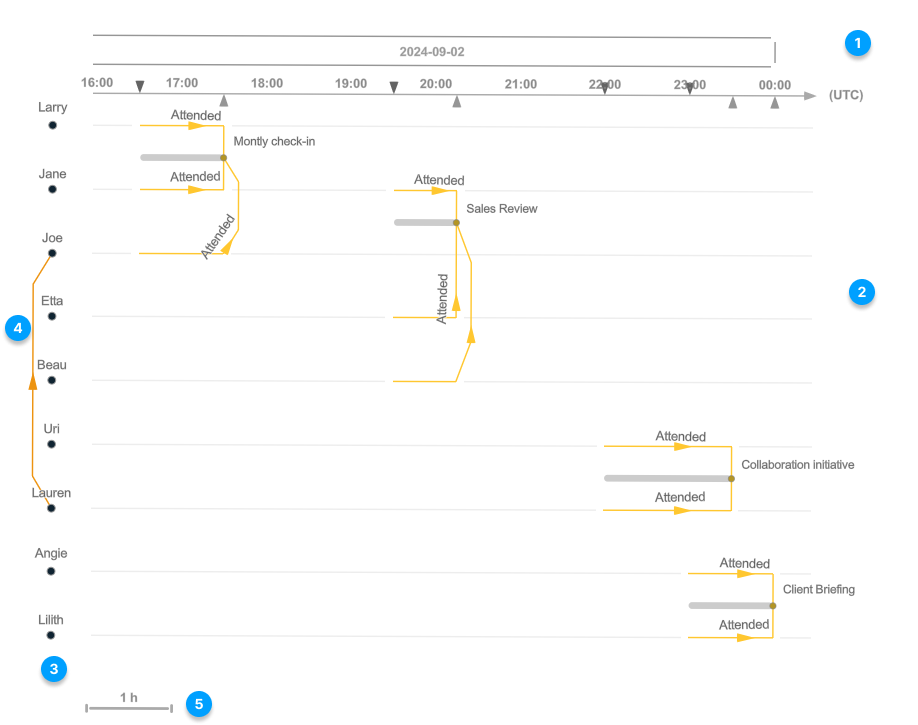

The multi-timeline layout has various elements to communicate the relationship between events over time.

The time axis (number 1 in the image above) indicates the time direction, the UTC offset, dates and times, and the start and end of events. Events are represented on multiple timelines (number 2 in the image above). A timeline can have a timeline root (number 3 in the image above) represented at the beginning of the timeline. The timeline root is a nonevent entity that is related to events drawn on the timeline. There is at most one timeline that has no root: this timeline contains events that are not related to any entity in the link chart. Relationships between nonevent entities and nonevent entities not related to event entities (number 4 in the image above) are displayed to the outside of the timeline roots. The time scale (number 5 in the image above) shows how the length of the timeline relates to hours.

You can change the properties that arrange entities and relationships in this layout in the layout settings.

Change the current layout for a link chart

A link chart's current layout appears on the Link Chart tab on the ribbon in the Layout group. For example, if the link chart is currently using the default standard organic layout, the icon for the standard layout appears on the drop-down list.

To apply a different layout to the entities and relationships in a link chart, complete the following steps:

1. Click the Link Chart tab on the ribbon.
2. To change the layout for the entire link chart, click Clear in the Selection group.
3. In the Visualization group on the ribbon, click the Layout drop-down list and click a different layout on the gallery.

   All entities and relationships on the link chart are rearranged according to the new layout. The icon for the new layout appears on the drop-down list on the ribbon and is now the current layout for the link chart.

4. To change the layout for a subset of graph items on the link chart, select the appropriate entities and relationships.
5. In the Visualization group on the ribbon, click the Layout drop-down list and click a different layout on the gallery.

   The selected entities and relationships only are rearranged according to the new layout. The icon for the new layout appears on the drop-down list on the ribbon and is now the current layout for the link chart.

Visualize spatial and nonspatial data

You can show or hide nonspatial graph items. By default, nonspatial graph items are shown in the link chart layout. Display filters can also be enabled on link charts in the same way they are enabled on maps.

Learn more about enabling display filters

On the Link Chart tab on the ribbon, in the Visualization group, click Show Nonspatial to hide all nonspatial data displayed on the link chart.

Note:

Hiding the nonspatial data does not clear any active selection.

Set the root entity for tree, radial, and hierarchical layouts

When you use a tree, radial, or hierarchical layout in a link chart, you can optionally choose a specific entity and use it as the root of the tree. You can select more than one root entity, but this is only meaningful when there are disjoined sets of content on the link chart that form more than one tree.

Three buttons are available on the ribbon in the Visualization group that allow you to set and visualize the root entity in the link chart.

• Show Roots—This toggle button allows you to see which entities in the link chart are set as the root entities for tree, radial, and hierarchical layouts. The root entities are highlighted with a green diamond on the link chart when the toggle button is on. Show Roots is on by default.
• Set Roots—If one or more entities are selected in the link chart, you can set them to be the root entities with this button.
• Select Roots—Use this option to interactively select the entity you want to set as the root entity. Any graph items that are currently selected in the link chart are cleared. Click an entity or draw a shape with the current selection tool to select the appropriate entities.

With this mode turned on for the active link chart, a green diamond symbol overlays each link chart entity currently set as a root. Also, the overlaying green diamond symbol automatically appears or disappears at the top of each entity you are adding to or removing from the set of currently specified root entities.

To set the root entity, complete the following steps:

1. Click the Link Chart tab on the ribbon.
2. If the Show Roots toggle button is not highlighted in the Visualization group on the ribbon, click the toggle button.

   When the Show Roots toggle button is on, the root entities in the link chart are highlighted with a green diamond. If no entities are highlighted in this manner, the root entities for the link chart have not been set.

3. Select one or more entities on the link chart to use as the root entities.
4. In the Visualization group, click Set Roots .

   A green diamond symbol appears over each selected entity to indicate it has been set as a root entity. The root entities remain selected in the link chart.

5. To change the root entities, click Select Roots .

   Any currently selected entities and relationships are deselected, and the root entities are selected.

6. Select entities to use as the root entities.
7. Click Set Roots .

   The green diamond symbol is removed from the previous set of root entities and appears over the currently selected entities in the link chart to indicate they are now root entities. The root entities remain selected in the link chart.

8. To clear all root entities, click Clear in the Selection group on the ribbon, and click Set Roots .

   All the green diamond symbols are removed from the link chart because there are currently no root entities in the link chart.

Tip:

After applying a layout to the entities in a link chart, you may realize there is a second disjoined tree present. To add another root entity for the second tree, the current root entity must be selected and you must also select another entity. Press Shift and click both entities, and click Set Roots.

Move entities and relationships

You can select entities and relationships interactively and move them to another position on a link chart using one of the available selection options.

In general, you can select entities and relationships on the link chart in the same way you select features on a map or select features using attributes. Use the selection tools available on the ribbon to determine how you want to interactively select entities and relationships, such as using the default rectangle selection tool.

At the bottom of the list, you can choose either to only select entities and relationships or to select and move them to a new position.

• Select is checked—Select entities and relationships. For example, you can remove the selected graph items from the link chart. You can't interactively move the selected graph items.
• Select and Move is checked—Select entities and relationships and move them to another position. The moved entities remain connected to other entities in the link chart that were not selected. The entities connecting the moved items to the rest of the link chart are stretched.

To select and move entities and relationships in a link chart, complete the following steps:

1. On the Link Chart tab on the ribbon, in the Selection group, click the Select drop-down list.
2. Click the selection tool you want to use at the top of the list, such as the Rectangle selection tool.
3. Check Select and Move at the bottom of the list.

   The active selection mode is checked and the drop-down list indicates you are using the Select and Move tool .

4. Hover over an unselected entity in the link chart.

   An orange circle appears over the entity that will be moved.

5. Drag the entity to a new location on the link chart.

   As you move the entity, any relationships to which it is connected are highlighted in orange. You can only move unselected entities individually.

   The entity is in its new position, and lines representing the relationships in which the entity participates are shrunk or stretched to accommodate its new location.

6. Interactively select entities and relationships on the link chart that you want to move.
7. Hover over a selected entity in the link chart.

   An orange circle appears over any selected entities that can be used as an anchor point to move the selected graph items. Selected relationships are also highlighted in orange.

8. Drag the highlighted orange graph items to a new location on the link chart.

   All selected graph items are moved together. Their current position with respect to each other is maintained in the new location.

   The graph items are in their new position. Lines representing the relationships that connect the selected entities to the rest of the link chart are shrunk or stretched to accommodate the new location.

Change organic layout settings

If you use organic layouts, settings allow you to adjust how entities and relationships are positioned on a link chart.

ArcGIS Pro uses an iterative process to determine where to place entities and relationships on the link chart. The number of iterations used by organic layouts to do the necessary calculations is optimized to get a good result in a reasonable amount of time. However, if you are willing to wait longer with large link charts, additional iterations can be made that can improve the overall results. Use the Computation Budget setting to indicate the maximum amount of time that can be spent performing the calculations. The value specified is not an absolute number of seconds, but a relative amount of time.

As discussed above for organic layouts, entities repel each other but are also attracted to each other by their relationships. By default, the repulsion radius used in organic layouts is calculated automatically based on the data in your graph. However, you can manually adjust the Repulsion Radius setting to get a different result. For example, with a community layout, if you increase the radius size, communities not tightly connected are positioned farther apart on the link chart. In other cases, if an organic layout evenly distributes a specific set of data in a circular pattern, for example, increasing the repulsion radius may not have a noticeable effect because the forces between the entities are well-balanced. The ideal edge length is multiplied by this value when the repulsion distance is calculated.

With a geographic layout, entities with spatial locations are fixed in their geographic position on the map. Entities without spatial locations are arranged using the standard layout. You can influence how these entities are arranged by modifying the Ideal Edge Length setting, which determines how attraction and repulsion forces are computed along a relationship. By increasing the ideal edge length, related entities without a spatial location are positioned farther away from those with a spatial location. Different lengths may be appropriate for maps of different scales.

Two methods can be used to calculate the ideal distance between a spatial entity and a related nonspatial entity. The Multiplicative setting is used by default, where the ideal distance that would typically be used on a link chart is multiplied by the given amount. The Absolute setting allows users to specify the ideal edge length in decimal degrees. Use a small absolute ideal value when the link chart has a large geographic scale, for example, when the data represents a city—larger numbers will place related nonspatial entities outside the map extent.

By default, the map will zoom in or out as you adjust the Ideal Edge Length settings. You will always see all entities on the link chart. Check the Keep current extent option to change the placement of the nonspatial entities without changing the map's scale.

To change organic layout settings, complete the following steps:

1. Ensure the current layout for the link chart is an organic layout.
2. On the Link Chart tab on the ribbon, in the Visualization group, click the Settings button .
3. Change the Computation Budget setting using one of the following methods:
   • Drag the slide control left or right.
   • Type a number into the text box.

   By default, two seconds are allowed to complete the appropriate calculations. The minimum value is one second and the maximum value is 100 seconds.

4. Click the Auto toggle button to turn off automatic calculations for the Repulsion Radius setting and change how the radius is calculated using one of the following methods:
   • Drag the slide control left or right.
   • Type a number into the text box.

   By default, a repulsion radius of one is used. The minimum value is one and the maximum value is 99.

5. If the current layout for the link chart is geographic, click the Ideal Edge Length drop-down list, click the appropriate method for calculating the distance, and use one of the methods below to change how the distance is calculated.
   • Drag the slide control left or right.
   • Type a number into the text box.

   For the Multiplicative method, a multiplier of one is used by default; the minimum value is zero and the maximum value is five. For the Absolute method, a multiplier of one is used by default; the minimum value is zero and the maximum value is 360.

6. If the current layout for the link chart is geographic, check Keep current extent to keep the same map scale as you change the layout settings.
7. Click Apply.

The entities are repositioned on the link chart according to the current settings.

Note:

To return the layout settings to their default values, click the Settings button , click Reset, and click Apply. Clicking Reset will not change your choice with respect to maintaining the current extent of the map when you use a geographic layout.

Change chronological layout settings

If you use chronological layouts, settings allow you to adjust the time banner, time direction, and how entities and relationships are positioned on a link chart. The Time axis direction determines which direction to orient the layout and where to place the oldest events. The default is left, which places the oldest events on the left of the time line and the newest event on the right.

The Line separation settings control how visually overlapping relationships are offset. The Strength setting offsets each overlapping relationship from the previous one by the given amount. Turn on the Space evenly toggle button to have the relationships offset equidistant from each other. Turn on the Use Bezier curves settings to offset overlapping relationships with default Bézier curves. The Shape ratio setting changes where the angles are located on the relationship line. The default is zero, which places a bend in the relationship near each entity. The larger the number, the closer to the middle of the relationship line the bends are placed.

By default, the link chart will zoom in or out as you adjust the layout settings. You will always see all entities on the link chart. Click the Keep current extent option to change the placement of the nonspatial entities without changing the map's scale.

To change the chronological layout settings, complete the following steps:

1. Ensure the current layout for the link chart is a chronological layout.
2. On the Link Chart tab on the ribbon, in the Visualization group, click Layout Settings .

   The Layout Settings pane appears.

3. Click one of the direction buttons to change the direction that the layout is oriented in the link chart.

   • • Left—The layout is arranged with time increasing from left to right.
     • Right—The layout is arranged with time increasing from right to left.
     • Up—The layout is arranged with time increasing from bottom to top.
     • Down—The layout is arranged with time increasing from top to bottom.

4. Specify the number of minutes for the time zone offset in UTC offset in minutes using one of the following methods.
   • Enter a number in the UTC Offset text box.
   • Click the up and down arrows in the UTC Offset text box to change the number.

   The default value is 0, the minimum value is -720 (-12:00 hours), and the maximum value is 840 (+14:00 hours). The value is multiplied by 60 to generate the UTC offset on the time banner.

5. Click the Show event ticks drop-down menu to change how events are shown on the time banner.
   • Start and end—A dark grey arrow is positioned at the start of the event and a light grey arrow is positioned at the end of the event. This is the default.
   • Start—A dark grey arrow is positioned at the start of the event.
   • None—No indicators are provided for the start or end of events.
6. Click Show duration to add a grey transparent line indicating the duration of the entity event.
7. Change the Width value of the duration line using one of the following methods:
   • Enter a number in the Width text box.
   • Click the up and down arrows in the Width text box to change the number.

   The default value is 5, the minimum value is 1, and the maximum value is 10.

8. If the current layout for the link chart is Multi-Timeline, move the Entity location slider to change where the duration line is placed in relation to the entity.

   By default, the duration line is drawn to the left of the entity.

9. If the current layout for the link chart is Multi-Timeline, click Show internal bounds to use the relationship lines to represent the start and end of an event.
10. Click Separate timeline overlaps to turn off the visual separation of events that overlap on a given timeline.

    By default, all events are drawn with no overlap.

11. Click Separate time overlaps to turn off the visual separation of events that overlap in time.

    By default, all events are drawn with no overlap.

    If the current layout for the link chart is Timeline, you can click Move first bends to have the relationship bend at the entity. By default, the first bend of the relationship is beyond the separated entities on the timeline.

12. If the current layout for the link chart is Timeline, increase or decrease Second bend ratio to change where the second relationship bend is positioned as a ratio of the position of the first bend using one of the following methods:
    • Enter a number in the Second bend ratio text box.
    • Click the up and down arrows in the Second bend ratio text box to change the number.

    The default value is 0.3, the minimum value is 0.0, and the maximum value is 1.0.

13. Increase the Strength value of the relationship line offset to change the distance that overlapping relationship lines are drawn from each other using one of the following methods:
    • Enter a number in the Strength text box.
    • Click the up and down arrows in the Strength text box to change the number.

    The default value is 0, the minimum value is 0.0, and the maximum value is 10.0.

14. Click Space evenly to make the space between two consecutive offset relationships even.
15. Click Use Bezier curves to make relationships offset with a default Bézier curve.

    Note:

    Clients that do not support Bézier curves will ignore this setting.

16. Increase the Shape ratio value to change where the bends in the offset relationships occur using one of the following methods:
    • Enter a number in the Shape ratio text box.
    • Click the up and down arrows in the Shape ratio text box to change the number.
17. Click Keep current extent to keep the same scale as you change the layout settings.
18. Optionally, click Auto Apply to automatically update the link chart layout as you change the settings.
19. Click Apply.
20. Optionally, click the Reset drop-down menu and choose one of the following options:
    • Reset to defaults—Reset all settings to the system default values.
    • Reset to Link Chart values—Discards the latest changes and resets to the last settings saved in the link chart.

The entities are repositioned in the link chart according to the current settings.

Increase or decrease text and symbol sizes in a link chart

You can fine-tune how entities and relationships and their labels are symbolized on the link chart using the buttons available. To increase or decrease symbol or labels for layers in the link chart, complete the following steps:

1. In the Contents pane, select the layers whose symbols you want to adjust using one of the following options:
   • To modify symbols for all layers in the link chart, select the knowledge graph layer or clear all selected layers.
   • Select the link chart layer for a specific entity type or relationship type to modify its symbols. The change will only affect how ungrouped entities and relationships are visualized.
   • Select the link chart aggregation layer for a specific entity type or relationship type to modify its symbols. The change will only affect how grouped entities and relationships are visualized.
2. On the Link Chart tab on the ribbon, in the Visualization group, click any of the buttons listed below to adjust the symbols for the selected layers.
   • To increase the size of an entity's point symbol and the width of a relationship's line symbol, click Increase Symbol .
   • To decrease the size of an entity's point symbol and the width of a relationship's line symbol, click Decrease Symbol .
   • To increase the font size for entity and relationship labels, click Increase Label .
   • To decrease the font size for entity and relationship labels, click Decrease Label .

Point symbols for the selected layers are modified on the link chart. Save your project to save your changes.

Add graphics to a link chart

As you build and arrange the entities and relationships on your link chart, you may discover aspects of the data or items of interest that require further investigation. You can use graphics layers on your link chart to add shapes, text, and pictures that call attention to a group of entities, a relationship, or add notes for future work.

1. On the Link Chart tab, in the Layer group, click Add Graphics Layer .

   A new graphics layer appears in the Contents pane.

2. After the graphics layer is created, click the Graphics tab. In the Insert group, use the gallery to insert new graphic elements.

Convert properties to timestamp offset

The time fields used in link chart chronological layouts must have the timestamp offset data type.

Learn more about converting temporal fields

To convert existing properties containing time data to timestamp offset properties, complete the following steps:

1. Activate the investigation view.
2. Right-click the knowledge graph in the Contents pane.
3. On the context menu that appears, click Add To New and click New Map.

   The new map opens.

4. On the Analysis tab, in the Geoprocessing group, click Tools.

   The Geoprocessing pane opens.

5. Click the Toolboxes tab.
6. Click Data Management Tools > Fields > Data and Time > Convert Temporal Field. Optionally, in the search bar, type Convert Temporal Field and select the tool.

   The Convert Temporal Field tool opens.

7. If necessary, at the top of the Geoprocessing pane, click Save Edits.
8. Click the Input Table drop-down menu and select the knowledge graph table for the entity type or relationship type that has a time property you want to convert.
9. Optionally, type a new output field name in Output Field Name.
10. Click the Output Field Type drop-down menu and select Timestamp Offset.
11. Click the Time Zone Offset drop-down menu and select the appropriate time zone for your data.
12. Optionally, click the Enable Undo toggle button to use an edit session for the changes made to the data.
13. Click Run.

    The Convert Temporal Field geoprocessing tool runs.

14. Activate the link chart view.
15. Double-click the link chart layer in the Contents pane for the property that was converted to timestamp offset.

    The Layer Properties dialog box appears.

16. Click the Time tab.
17. Under Filter using time, click the Filter layer content based on attribute values option.
18. Click the Time Field drop-down list and select the converted timestamp offset property.
19. Click OK.
20. On the Link Chart tab, in the Visualization group, click the Layout drop-down menu and select a chronological layout.

The chronological layout is applied to the link chart.
