Generate a True Ortho using ArcGIS Reality for ArcGIS Pro

Available with Standard or Advanced license.

Available for an ArcGIS organization with the ArcGIS Reality license.

A True Ortho is an orthorectified image corrected using a digital surface model (DSM), which removes perspective distortion. There is no displacement caused by relief or tall structures, resulting in no building lean obscuring ground features and allowing building footprints to be correctly identified. You can create True Orthos in ArcGIS Reality for ArcGIS Pro.

Once you create a Reality mapping workspace and complete the block adjustment process, you can generate a True Ortho using the True Ortho product wizard. To create a True Ortho, a DSM that is derived from the adjusted block of overlapping images is required. As a result, a DSM is generated as a part of the True Ortho generation process even if it was not previously selected as a product. The generated True Ortho is stored in the Orthos folder in the Reality Mapping category in the Catalog pane.

Once created, a True Ortho can be used to support the following:

  • Basemap creation
  • GIS data backdrop
  • 2D heads-up digitizing
  • 2D vector database updating

True Orthos can be generated from highly overlapping satellite, digital aerial, and drone sensor data. When using digital aerial imagery, the recommended image type for generating a True Ortho is nadir. However, oblique imagery (including nadir) can also be used to enhance product quality, but the processing duration will be significantly longer when compared to using nadir imagery only.

To generate a True Ortho using the ArcGIS Reality for ArcGIS Pro True Ortho wizard, complete the steps below.

Note:

For efficient processing, it is recommended that you use nadir imagery to generate True Ortho products. Before you begin the workflow, ensure that you have created a Reality mapping workspace and completed the block adjustment process.

  1. On the Reality Mapping tab, click the True Ortho button True Ortho in the Product category.

    The Reality Mapping Products Wizard window appears.

  2. Click Shared Advanced Settings.

    The Advanced Product Settings dialog box appears, where you can define parameters that will impact the Reality mapping products that will be generated. For a detailed description of the advanced product settings options, see Shared Advanced Settings in the wizard.

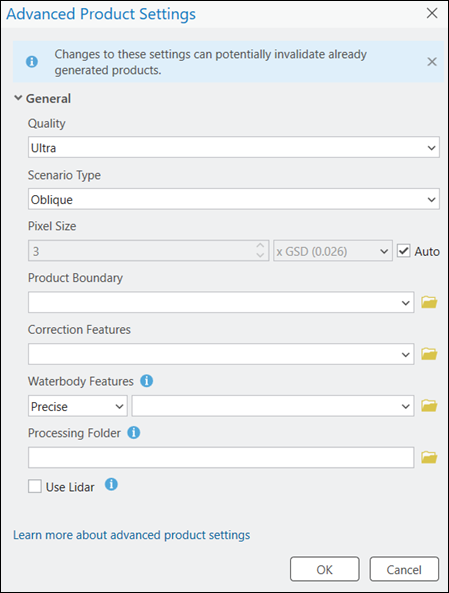

    Advanced Product Settings dialog box

  3. If a full resolution True Ortho product is required, ensure that Quality is set to Ultra, and to manually define the True Ortho output resolution, for Pixel Size, select Meters from the drop-down menu, and provide the required pixel size.

    The Quality and Scenario Type settings are automatically set by the application and should not be changed to ensure optimum performance and product quality. However, if you want to generate a reduced resolution product, the Quality setting can be lowered. See Shared Advanced Settings in the wizard for more information about the impact of various quality settings on product generation.

    Note:

    The Scenario Type setting is not applicable when processing satellite images and is not included on the Advanced Product Settings dialog box for the satellite sensor data type.

  4. For Product Boundary, select a feature class identifying the output product extent from the drop-down list or click the Browse button Open folder connection and browse to and select one.

    It is recommended that you provide a project boundary for the following reasons:

    • Define the proper output extent—When you do not define a product boundary, the application automatically defines an extent based on various dataset parameters that may not match the project extent.
    • Reduce processing time—If the required product extent is smaller than the image collection extent, defining a product boundary reduces the processing duration and automatically clips the output to the boundary extent.

  5. To specify a water body feature layer, click the Browse button Open folder connection next to Waterbody Features.
    Note:

    If water body features, such as lakes and rivers, exist within the project area, it is recommended that you add a precreated 3D feature class identifying those areas, using the Waterbody Features setting to hydrologically enforce those features in the output product. Use the stereoscopic compilation in ArcGIS Image Analyst to generate the 3D feature layer that identifies water body features. This ensures that there will be no image stretching around hydrological feature boundaries in the output due to differences in elevation between the derived DSM height and the feature class height values.

    The Waterbody Features options are Precise and Coarse. Use the Precise option when the 3D polygon being added accurately defines the shape of the hydrological features in the project area. Precise polygons can be created using the stereoscopic compilation in ArcGIS Image Analyst. A precise water body polygon can also be derived from national mapping organizations with open data policies. Additionally, it can be created using 2D heads-up digitizing from an authoritative, orthorectified imagery that is temporally similar, with the aid of a digital elevation model (DEM).

    Use the Coarse option when a generalized 3D polygon is being used as the water body feature. Generalized polygons can be created using a 2D heads-up digitizing workflow. If 2D heads-up digitizing is used to create a precise or coarse polygon, it must be converted to 3D (x,y,z) before it can be used as a water body feature. See Introduction to 2D and 3D features for additional information about converting a 2D feature to 3D. When using a coarse water body feature, the shape of the polygon must follow the shape of the water body feature for best results.

  6. For Processing Folder click the browse button Open folder connection, browse to disk, and define the Reality mapping temporary folder location. The temporary files required for generating 2D or 3D products will be stored here.
  7. Accept all other default values and click OK.

    The Advanced Product Settings dialog box closes, and you are returned to the Products Generation Settings page in the Reality Mapping Products wizard.

  8. Click Next in the Reality Mapping Products Wizard window to go to the True Ortho Settings page.
  9. For Output Type, select either Tiled or Mosaic from the drop-down list.
    • Tiled—Generate system-defined square tiled image subsets.
    • Mosaic—Generate a single image covering the project area.
  10. Choose a Format option for the output.
    • Cloud Raster Format—Generate a packaged multilayered file ideal for cloud storage.
    • TIFF Format—Generate output in standard GeoTIFF format.

      The default output format for tiled True Ortho products is TIFF.

  11. For Compression, choose one of the following:
    • None—No compression is applied to the output product. This is the default option.
    • LERC—Limited Error Raster Compression (LERC) is a controlled lossy compression algorithm. The rate of compression is controlled by a tolerance setting. For example, setting a tolerance of 0.001 results in a DSM value that was previously 15.654321 to be scaled to 15.654.
  12. Set Resampling to Bilinear.
    • Resampling options are as follows:
      • Nearest Neighbor—Recommended for categorical data or continuous data when you want to preserve the integrity of spectral information to be used for analysis. The value of the output pixel is determined by the nearest pixel center on the input image.
      • Bilinear—Recommended for continuous data such as a DEM or imagery. It uses a weighted average of the four nearest cell centers.
      • Cubic—Recommended for continuous data such as imagery. It uses the 16 nearest pixels to determine the value of the output pixel value, resulting in a slight blurring effect that is visually pleasing. This method is also known as bi-cubic convolution.
  13. Optionally, set a value for NoData Value that’s appropriate for the output data bit depth.
  14. Click Finish to initiate product processing.

    When processing is complete, the True Ortho product is added to the following:

    • The Data Products category and the 2D map view in the Contents pane
    • The Reality Mapping container in the Orthos folder in the Catalog pane

True Ortho product
