Extract by Mask (Spatial Analyst)

Available with Spatial Analyst license.

Summary

Extracts the cells of a raster that correspond to the areas defined by a mask.

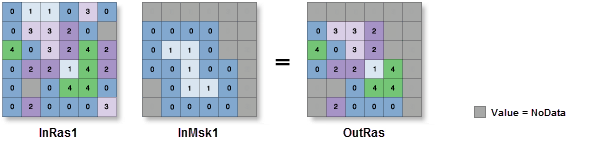

Illustration

OutRas = ExtractByMask(InRas1, InMsk1, "INSIDE")

Usage

• Additional attributes from the input raster, if any, will be carried over as-is to the output raster attribute table. Depending on the property being recorded, some of the attribute values may need to be recalculated.

• When a multiband raster is specified as the Input Raster (in_raster in Python) value, all bands will be used.

  To process a selection of bands from a multiband raster, first create a raster dataset composed of those particular bands using the Composite Bands tool. Then use the result as the Input Raster (in_raster in Python) value.

  The default output format is a geodatabase raster. If an Esri Grid stack is specified as the output format, the name of the stack cannot start with a number, use spaces, or be more than nine characters in length.

• When a multiband raster is specified for the input raster mask, only the first band will be used in the operation.

• When the Input raster (in_raster in Python) value and the Input raster or feature mask data raster data (in_mask_data in Python) are of the same cell size and the cells are aligned, they will be used directly in the tool. They will not be resampled internally during tool operation.

  If the cell size is different, the output cell size will be the maximum of the inputs, and the Input raster value will be used as the snap raster internally. If the cell size is the same but the cells are not aligned, the Input raster value will be used as the snap raster internally. Either of these cases will trigger an internal resampling before the extraction operation is performed.

  More information is available in the Cell Size and Snap Raster environment topics.

• If the mask input is a feature, it will be converted to a raster internally, using the cell size and cell alignment (snap raster) from the Input raster value by default.

• If Mask is specified in the environment setting while running the Extract by Mask tool, the output raster will have cell values only for the area that lies within the intersection of the environment mask and the input mask data.

• You can use the Analysis Extent (analysis_extent in Python) parameter to specify the output analysis area explicitly for a stand-alone tool operation or to override the environment setting as part of a workflow. You can specify the extent by typing values, choosing the display extent, selecting a layer, or browsing for an input dataset.

• The default Analysis Extent value is calculated from the intersection of the Input raster value and the Input raster or feature mask data value.

• If the analysis extent is not explicitly specified as the parameter value, it will be derived from the analysis environment settings.

• See Analysis environments and Spatial Analyst for additional details on the geoprocessing environments that apply to this tool.

Parameters

Dialog

Label	Explanation	Data Type
Input raster	The input raster from which cells will be extracted.	Raster Layer
Input raster or feature mask data	The input mask data defining the cell locations to extract. It can be a raster or a feature dataset. When the input mask data is a raster, NoData cells on the mask will be assigned NoData values on the output raster. When the input mask is feature data, cells in the input raster whose center falls within the specified shape of the feature will be included in the output, while cells whose center falls outside will receive NoData.	Raster Layer; Feature Layer
Extraction Area (Optional)	Specifies whether cells inside or outside the locations defined by the input mask will be selected and written to the output raster. Inside—Cells within the input mask will be selected and written to the output raster. All cells outside the mask will receive NoData on the output raster. This is default. Outside—Cells outside the input mask will be selected and written to the output raster. All cells covered by the mask will receive NoData.	String
Analysis Extent (Optional)	The extent that defines the area to be extracted. By default, the extent is calculated as the intersection of the Input raster value and the Input raster or feature mask data value. Processing will occur out to the x and y limits, and cells outside that extent will be NoData. The coordinates are specified in the same map units as the input raster if not explicitly set by the analysis environment. Current Display Extent —The extent will be based on the active map or scene. Draw Extent —The extent will be based on a rectangle drawn on the map or scene. Extent of a Layer —The extent will be based on an active map layer. Choose an available layer or use the Extent of data in all layers option. Each map layer has the following options: All Features —The extent of all features. Selected Features —The extent of the selected features. Visible Features —The extent of visible features. Browse —The extent will be based on a dataset. Clipboard —The extent can be copied to and from the clipboard. Copy Extent —Copies the extent and coordinate system to the clipboard. Paste Extent —Pastes the extent and coordinate system from the clipboard. If the clipboard does not include a coordinate system, the extent will use the map’s coordinate system. Reset Extent —The extent will be reset to the default value. When coordinates are manually provided, the coordinates must be numeric values and in the active map's coordinate system. The map may use different display units than the provided coordinates. Use a negative value sign for south and west coordinates.	Extent

Return Value

Label	Explanation	Data Type
Output raster	The output raster containing the cell values extracted from the input raster.	Raster

Python

ExtractByMask(in_raster, in_mask_data, {extraction_area}, {analysis_extent})

Name	Explanation	Data Type
in_raster	The input raster from which cells will be extracted.	Raster Layer
in_mask_data	The input mask data defining the cell locations to extract. It can be a raster or a feature dataset. When the input mask data is a raster, NoData cells on the mask will be assigned NoData values on the output raster. When the input mask is feature data, cells in the input raster whose center falls within the specified shape of the feature will be included in the output, while cells whose center falls outside will receive NoData.	Raster Layer; Feature Layer
extraction_area (Optional)	Specifies whether cells inside or outside the locations defined by the input mask will be selected and written to the output raster. INSIDE—Cells within the input mask will be selected and written to the output raster. All cells outside the mask will receive NoData on the output raster. This is default. OUTSIDE—Cells outside the input mask will be selected and written to the output raster. All cells covered by the mask will receive NoData.	String
analysis_extent (Optional)	The extent that defines the area to be extracted. If not specified, the default extent is the intersection of the in_raster value and the in_mask_data value. The coordinates are specified in the same map units as the input raster if not explicitly set by the analysis environment. MAXOF—The maximum extent of all inputs will be used. MINOF—The minimum area common to all inputs will be used. DISPLAY—The extent is equal to the visible display. Layer name—The extent of the specified layer will be used. Extent object—The extent of the specified object will be used. Space delimited string of coordinates—The extent of the specified string will be used. Coordinates are expressed in the order of x-min, y-min, x-max, y-max.	Extent

Return Value

Name	Explanation	Data Type
out_raster	The output raster containing the cell values extracted from the input raster.	Raster

Code sample

ExtractByMask example 1 (Python window)

This example extracts cells from a raster within a mask defined by an input polygon shapefile feature class.

import arcpy
from arcpy import env
from arcpy.sa import *
env.workspace = "C:/sapyexamples/data"
outExtractByMask = ExtractByMask("elevation", "mask.shp", "INSIDE")
outExtractByMask.save("C:/sapyexamples/output/maskextract")

ExtractByMask example 2 (stand-alone script)

This example extracts cells from a raster for all areas outside a mask defined by an input polygon shapefile feature class, keeping the output extent of the input raster.

# Name: ExtractByMask_Ex_02.py
# Description: Extracts the cells of a elevation raster for all areas outside of the mask features.
#     Keeping the output extent of the input elevation raster.
# Requirements: Spatial Analyst Extension

# Import system modules
import arcpy
from arcpy import env
from arcpy.sa import *

# Set environment settings
env.workspace = "C:/sapyexamples/data"

# Set local variables
inRaster = "elevation"
inMaskData = "mask.shp"
extraction_area = "OUTSIDE"
analysis_extent = "elevation"


# Execute ExtractByMask
outExtractByMask = ExtractByMask(inRaster, inMaskData, extraction_area, analysis_extent)

# Save the output
outExtractByMask.save("C:/sapyexamples/output/extractmask")
